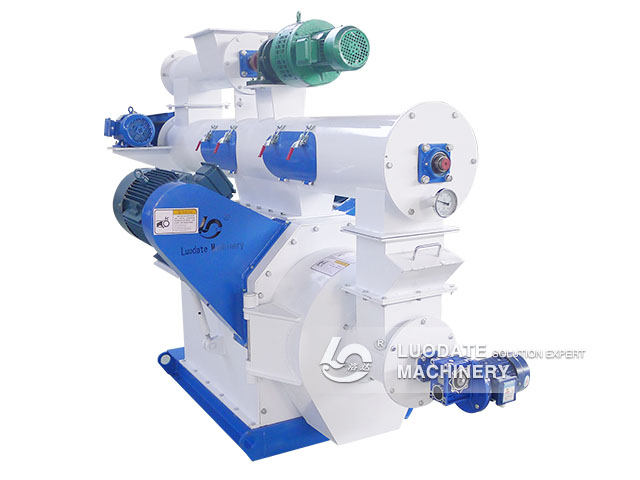

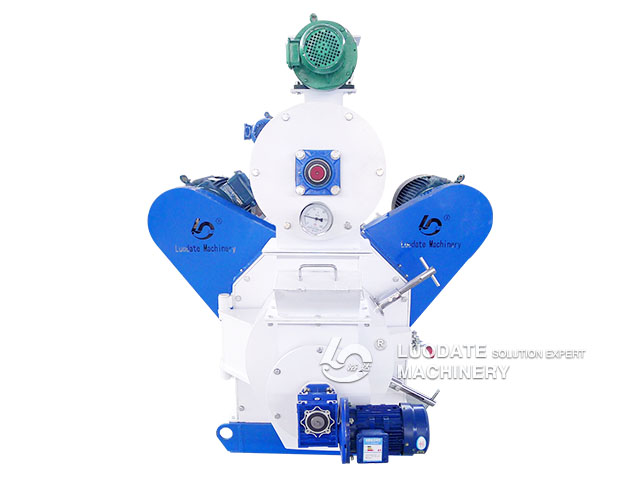

SZLP series Straw Pellet Mill

  • Type: SZLP series Straw Pellet Mill
  • Capacity(t/h): 0.3-3
  • Pellet size(mm): 6-12
  • Application: suitable for granulation of wood chips, sawdust, rice husk, wheat straw, cotton stalk, palm shell, sunflower, olive residue, bagasse and other raw materials.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • This machine can be used for granulation of rice husk, wheat straw, cotton stalk, sawdust, wood chips, palm shell, sunflower, olive residue, bagasse and other raw materials.
  • Double motor drive system with the ideal transmission ratio, large driving torque, smooth transmission.
  • The VVVF (electromagnetic speed) feeding, is equipped with overload protection device, a magnetic plate iron removing device.
  • The high yield, low noise, convenient operation and maintenance.
  • The main parts of the bearings and the standard parts are imported.
  • With 6-12mm, a variety of ring die size and thickness, the user can choose according to different needs.

Technical Parameter:

Model Power (kw) Power of feeder (kw) Power of conditioner(kw) Power of forced feeding device (kw) Pellet size (mm) Capacity (t/h) Dimension (mm)
SZLP 250 22 0.75 2.2 0.75 6-12 0.1-0.5 2200×1400×1600
SZLP 320 37/44 1.5 3 0.75 6-12 0.3-1 2400×1500×1800
SZLP 350 30×2 1.5 3 0.75 6-12 0.8-1.5 2900×1600×1800
SZLP 420 55×2 1.5 5.5 0.75 6-12 1.5-2.5 3500×1700×1900
SZLP 508 75×2 1.5 5.5 0.75 6-12 2-3 4300×1800×2000
