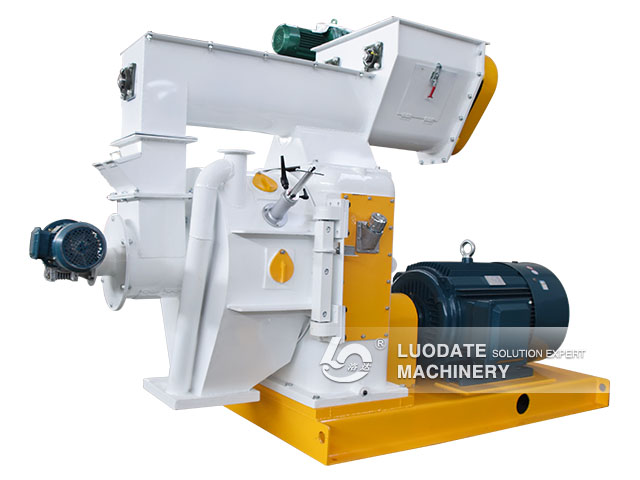

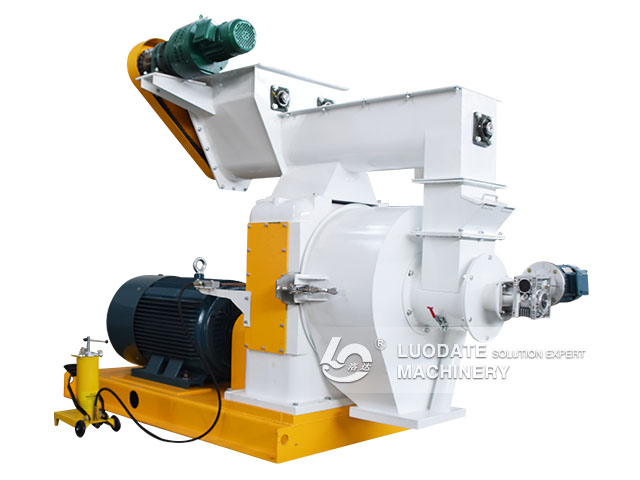

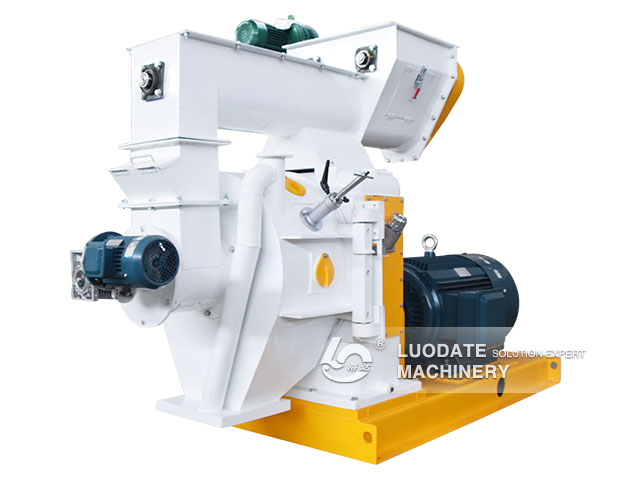

SZLH series Straw Pellet Mill

  • Type: SZLH series Straw Pellet Mill
  • Capacity (t/h): 0.3-3
  • Pellet size (mm): 6-12
  • Application: suitable for granulation of wood chips, sawdust, rice husk, wheat straw, cotton stalk, palm shell, sunflower, olive residue, bagasse and other raw materials.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse, and other raw materials.
  • Main drive adopts high accuracy gearbox for high efficiency.
  • Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.
  • High output, low noise, convenient operation and maintence.
  • Main parts of the bearing and standard parts are imported.
  • Equipped with between Φ6 and Φ12 more aperture and the thickness of the ring die, users can choose according to the different needs.

Technical Parameter:

Model Main power (kw) Feeder power (kw) Forced feeding device of power (kw) Inner diameter of ring die (mm) Particle size (mm) Exterior dimension (mm) Size (mm)
SZLH 250 22 0.75 0.55 250 6-12 0.1-0.2 1420×1200×1400
SZLH 320 37/45 0.75 0.55 320 6-12 0.3-0.5 2200×1000×1500
SZLH 350 55 1.1 0.55 350 6-12 0.5-0.8 2500×1100×1600
SZLH 400 75/90 1.5 0.75 400 6-12 0.8-1.5 2700×1150×1700
SZLH 420 90/110 1.5 0.75 420 6-12 1.5-2 2800×1150×1730
SZLH 508 132/160 1.5 0.75 508 6-12 2-3 3000×1260×1860
