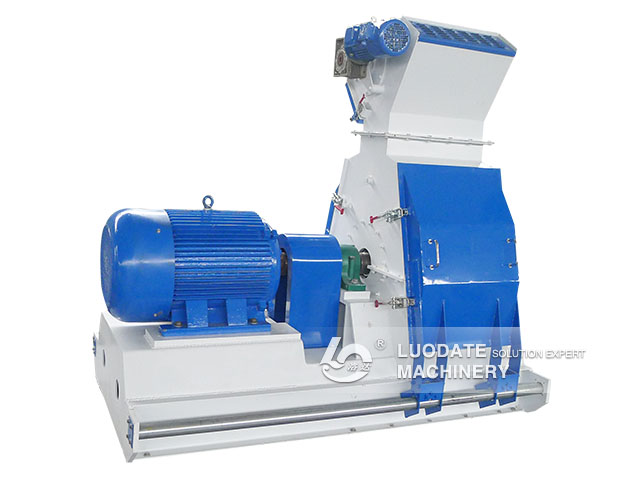

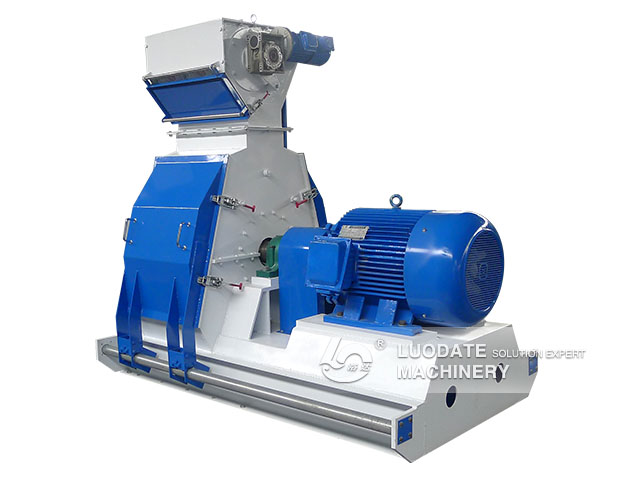

SWFC66 series Claw Type Grinder

  • Type: SWFC66 series Claw Type Grinder
  • Capacity(t/h): 3-33
  • Power(kw): 55-315
  • Application: This series can crush the grains, wheat, beans, grain`s husk,bran,starch and some hard-to-crashed materials.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1. This series can crush the grains, wheat, beans, grain`s husk,bran,starch and some hard-to-crashed materials.
2. Feed industry, flour industry, food industry, chemical industry,Chinese herbal medicine industry, etc, the crushing fineness will arrive to 40-120 mesh or more.

Working principle:
1. This machine has a disk which made of several tooth and claw,the impact poles drive the rotor disk and the hammer.
2. The rotating of the impact pole make impacting,cutting,rubbing,ripping and pressing, to grinding the materials.

Technical Parameter:

Model Rotor diameter (mm) Dynamic hammer (unit) Impact of column (unit) Fixed grinding teeth (unit) Power (kw) Capacity (t/h) Size (mm)
SWFC66X60 660 24 42 167 55 3-8 2175×1340×1455
75 4-9
SWFC66X80 660 32 56 206 90 5-10 2620×1340×1455
110 6-11
SWFC66X100 660 40 70 270 132 7-13 3020×1340×1455
160 8-15
SWFC66X125 660 48 84 334 180 9-17 3530×1340×1455
220 11-22
SWFC66X160 660 64 122 454 285 15-27 4330×1340×1455
315 19-33
