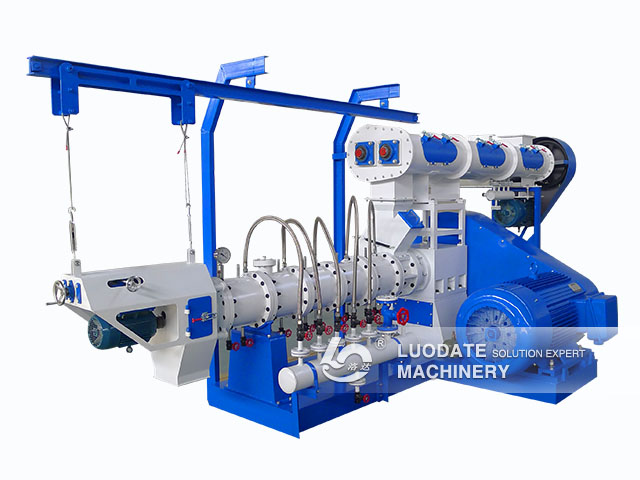

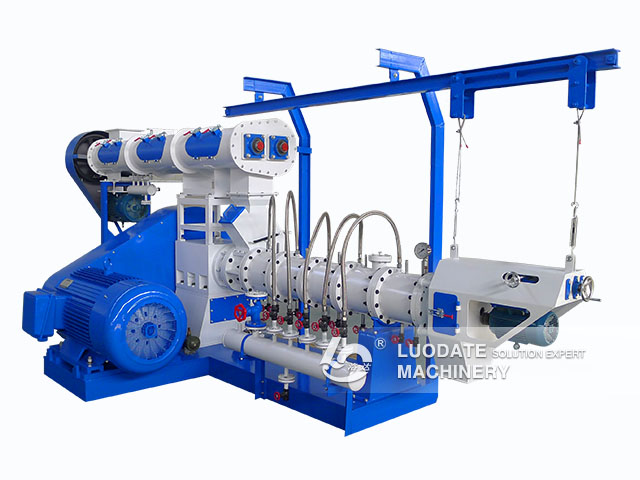

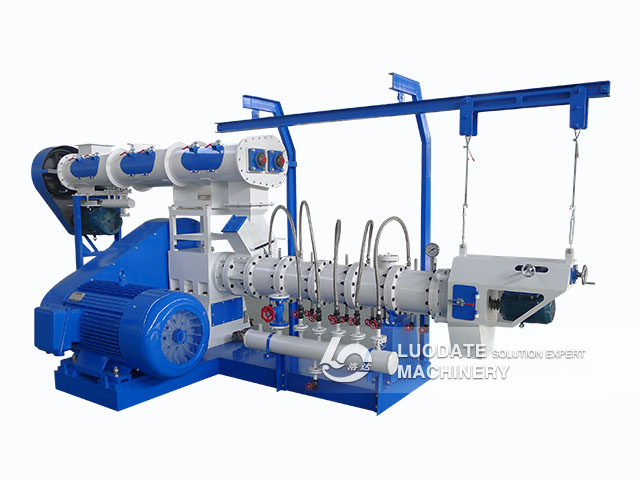

SPH series Fish Feed Extruder

  • Type: SPH series Fish Feed Extruder
  • Capacity(t/h): 3-10
  • Power (kw): 160-315
  • Application: suitable for all kinds of floating aquatic feed processing

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • The molding process is applicable to all kinds of floating aquatic feed.
  • The product particles forming uniform stability.
  • It can achieve precise control of water, steam and feed collocation PLC system.
  • The wearing parts are made of abrasion resistant alloy steel by special processing technology, the service life is 5 times more than ordinary materials.
  • The outer sleeve of the machine barrel is provided with a jacket, which can directly inject steam (or cold water) into the machine barrel to effectively heat (or cool) the different extrusion sections.
  • The feeding device adopts a variable pitch screw, no knot arch, homogeneity.
  • The feeder is driven by the inverter, easy to adjust the volume of feed.
  • Please use the imported NSK bearings with oil lubrication system and oil cooling system, the service life of the bearing is increased by 3-5 times.

Technical Parameter:

Model Screw diameter (mm) Host power (kw) Conditioner power (kw) Capacity(t/h) Notes
SPH165 165 160/200 7.5/15 3-5 Die hole 2-5мм
SPH218 218 250/315 18.5/22 6-10 Die hole 3-6мм
