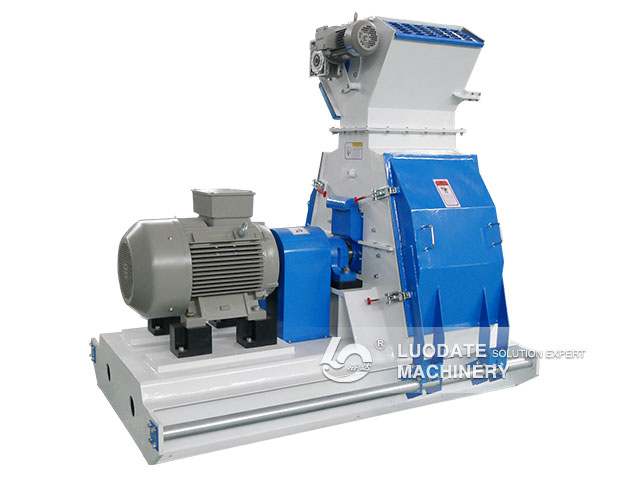

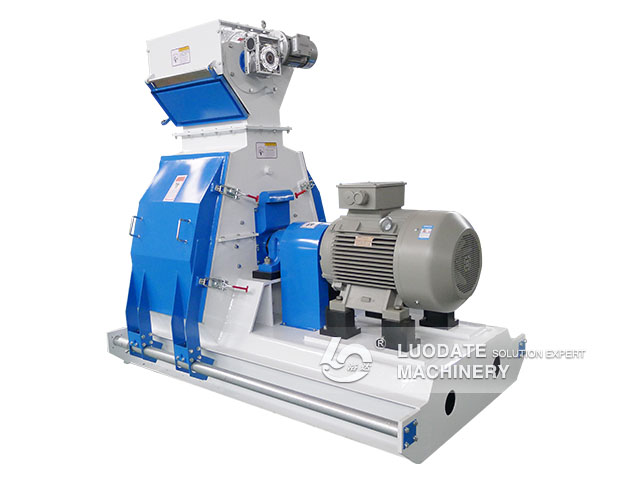

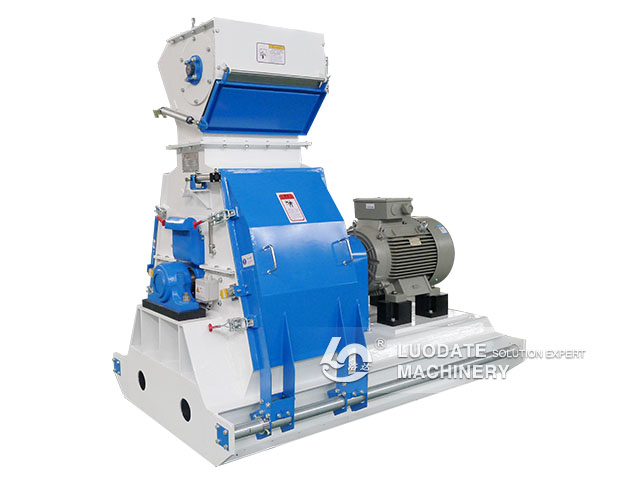

SFSP66 series Hammer Mill

  • Type:SFSP66 series Hammer Mill
  • Capacity(t/h):2-45
  • Power(kw):37-220
  • Application:corn, sorghum, wheats, beans, cottonseed meal,canola,etc.It can do coarse grinding and fine grinding processes.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

  • This series Grinder can grind kinds of granules feed materials, like: corn, sorghum, wheats, beans,cottonseed meal,canola, etc. It can do coarse grinding and fine grinding processes, and also apply to high moisture, high fiber feed crushing. Multi-function hammer mill, using high-quality tungsten carbide spray hammer, longer life.
  • It can apply to aquatic feed and special feed plants` fine powder grinding, and also the fine powder processing of the medicine,and so on.
  • The motor is set on the same base with the rotor, direct drive.
  • Compact structure, quick and easy to changing the seive.
  • It have the safety device on the operating door,The rotor is calibrated by strict dynamic balance.
  • Fine grinding, the seive mesh size Ф0.5mm-Ф3.0mm.

Technical Parameter:

Model Rotor diameter (mm) Hammer (piece) Crushing chamber width (mm) Motor power (kw) Capacity (t/h) Size (mm)
Sieve (3mm) Sieve (4mm)
SFSP66X40 660 40 400 37 5-6 6-8 1790×1340×1455
45 7-8 8-10
SFSP66X60 660 64 600 55 8-10 10-13 2175×1340×1455
75 10-12 12-14
SFSP66X80 660 88 800 90 12-16 16-20 2620×1340×1455
110 16-20 18-22
SFSP66X100 660 100 1000 132 18-24 23-26 3020×1340×1455
160 20-24 24-28
SFSP66X125 660 125 1250 180 28-30 30-36 3530×1340×1455
220 32-38 35-45
