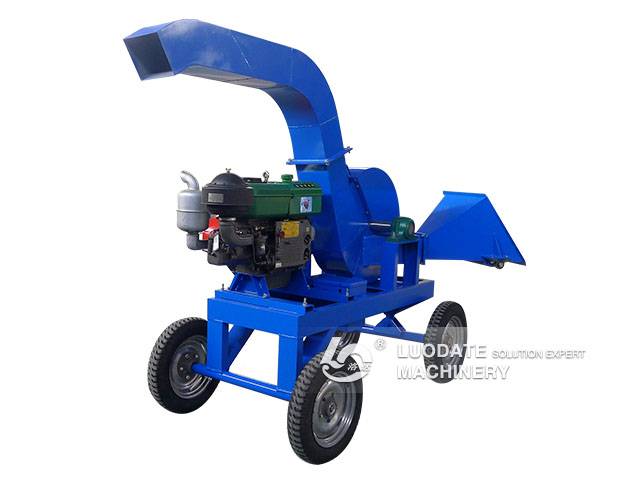

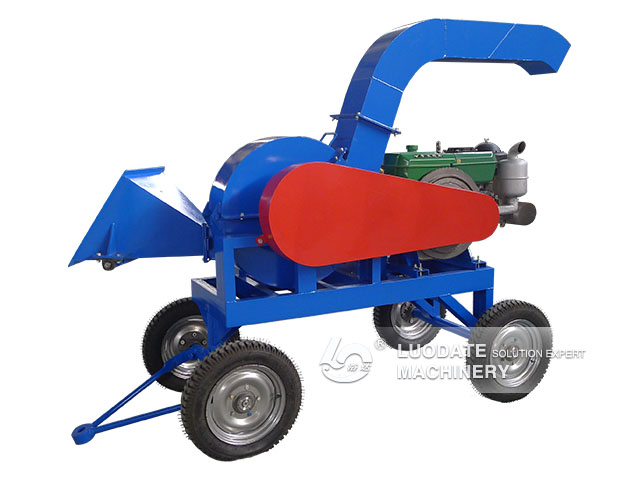

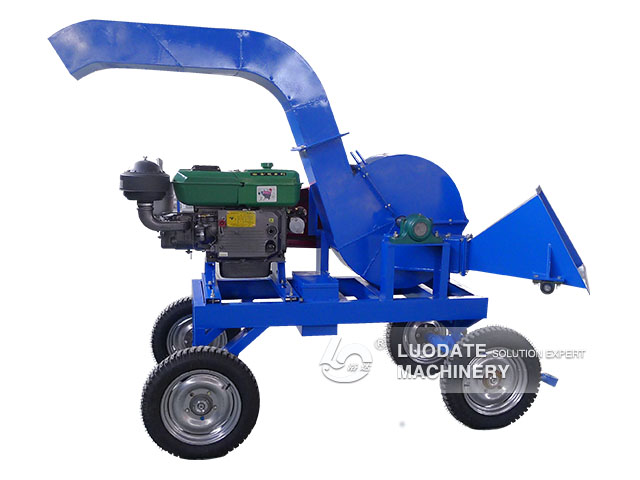

Mobile Wood Chipper

Type: LDT series Mobile Wood Chipper
Power(kw): 15 – 55
Capacity(t/h): 1 – 12
Appication: Use for all kinds of wood, bamboo, mobile operations,etc.

Send e-mail:[email protected]

Chat Online Leave Message

Product Feature:

1.Diesel engine driven, movable, towable, easy to operate and flexible.
2.Disc chipper is mainly used for cutting logs, get the better quality of wood chips, mostly used in pulp and paper mill.
3.Disc chipper blade includes ordinary chipper (4-6 knives) and multi-chip (6-8 knives).
4.Chipper feeding method has oblique mouth feeding and flat mouth feeding (or horizontal feeding).
5.Long shavings usually adopt flat mouth feeding. Short logs and slab shavings adopt tilted feeding and flat feeding.

Technical Parameter:

Model	Power(hp)	Mainshaft speed(r/min)	Blade quantity(pieces)	Cutterhead diameter(mm)	Weight(kg)	Capacity(t/h)
500	20	600	4	500	300	1-2
600	30	600	4	600	400	2-3
800	40	600	4	800	650	4-5
950	50	600	4	950	800	6-8
1100	75	600	4	1100	1650	10-12
1210	100	600	4	1210	2500	12-15
1410	125	600	4	1410	3200	15-20
